What are the main types of CNC chip removal systems

When you use a CNC machine, you must handle metal shavings and debris. Chip removal systems keep the workspace clean and safe. These systems use gravity, conveyors, vacuums, or coolant flush methods. Each type helps you remove chips fast. This makes your CNC chip removal and cooling system work well. A good system protects your machine and gives you better results.

Gravity-Based Chip Removal Systems

How gravity-based chip removal works

Gravity-based chip removal systems use gravity to move chips away. The chips fall down a chute or ramp. They land in a bin or tray under the machine. This works best if the chips have a clear path. You see this system in simple setups. It is also common with a heavy duty cnc vertical milling machine. You do not need extra motors or moving parts. The chips slide down by themselves while you are machining.

Benefits of gravity-based systems

There are many good things about using gravity-based chip removal systems:

• The design is simple, so fewer parts can break.

• You save money because you do not need extra equipment.

• Maintenance is easy. You just check the chute and empty the bin often.

• These systems work well for small or medium chip loads.

• You can use them with many types of cnc machines.

Tip: If you want a chip removal system that is easy to take care of, gravity-based options are a smart choice.

Here is a table that shows how much maintenance different chip removal systems need:

Limitations of gravity-based systems

Gravity-based chip removal systems have some problems too. Chips can pile up if the chute gets blocked. This can slow down your work. These systems do not work well for lots of chips or sticky chips. If your cnc machine makes a lot of chips fast, you may need a better chip removal system. You also need to set the machine at the right angle so gravity works. Sometimes, you have to stop the machine to clear out chips. This can make you lose time.

If you want your cnc machine to work well, always check your chip removal systems. Good chip removal helps you avoid trouble and keeps your workspace safe.

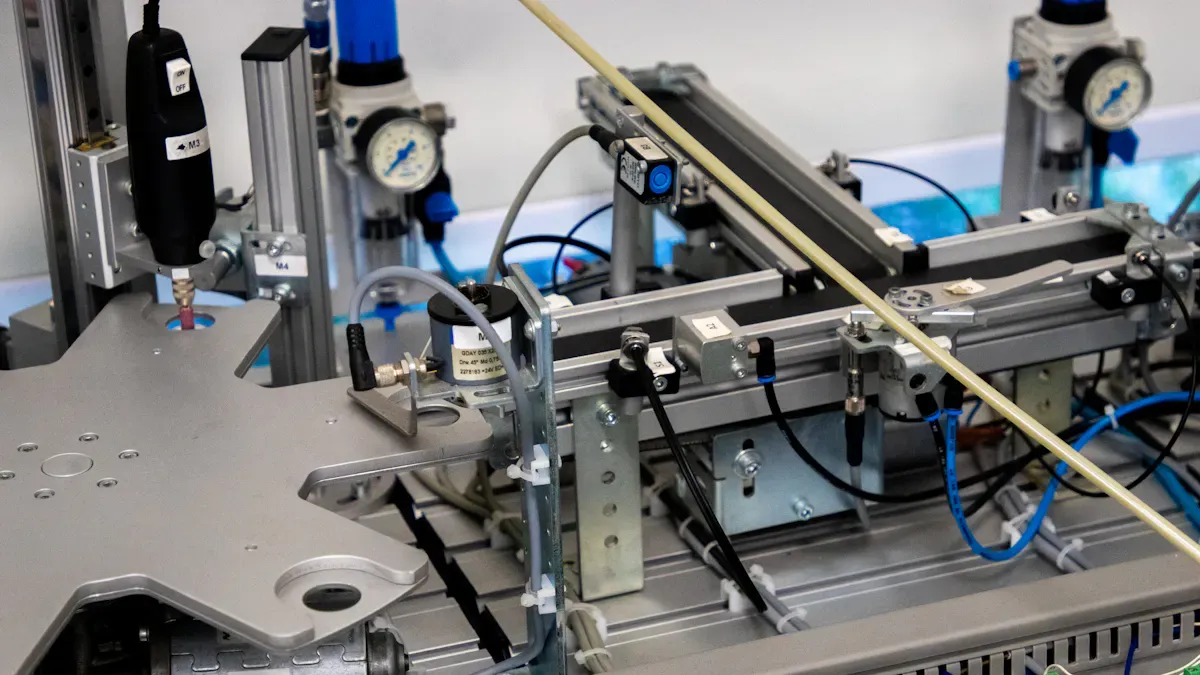

Conveyor Chip Removal Systems

How conveyor chip removal systems work

Conveyor chip removal systems use a conveyor belt to move chips away. These systems are found in many modern cnc machines. The conveyor takes chips to a bin or outside the machine. There are different types of chip conveyors you can pick. Chain conveyors are strong and handle heavy chips well. Belt conveyors are good for lighter chips. Screw conveyors fit in small spaces and move chips easily. These systems keep your workspace clean and help your chip removal system work well while machining.

Note: Conveyor chip removal systems are more advanced than gravity-based systems. They remove chips faster and you have less downtime.

Advantages of conveyor chip removal systems

You get many good things from using conveyor chip removal systems:

• Chips move away fast, so you do not stop the machine much.

• You can handle lots of chips, even with a heavy duty cnc vertical milling machine.

• Chip conveyors work with many chip shapes and sizes.

• Your cnc machine runs longer without stopping.

• These systems protect your machine from chip buildup.

Here is a table that shows the types of chip conveyors and their best uses:

Drawbacks of conveyor chip removal systems

Conveyor chip removal systems have some problems too. You must check belts, chains, and motors often. If a conveyor breaks, you may need to stop your cnc machine. These systems cost more than gravity-based systems. You need extra space for the conveyor and bin. Sometimes, chip conveyors get clogged if you do not clean them. You must pick the right chip removal systems for your needs to avoid trouble.

Tip: Always check your chip removal system for wear and keep it clean. This helps you avoid downtime and keeps your cnc machine safe.

Vacuum Chip Removal and Cooling System

How vacuum chip removal and cooling system works

A vacuum chip removal and cooling system keeps your CNC workspace clean. It uses strong suction to pull chips away from the cutting area. You often see this system where high precision is needed. The vacuum moves chips into a filter or collection bin. The cooling system uses compressed air or coolant to lower the tool’s temperature. This stops the tool from getting too hot. It helps your machine run smoothly. In a heavy duty cnc vertical milling machine, the coolant cools both the tool and the workpiece. It also pushes chips away from the cutting area. This makes chip removal easier.

Here is a table that shows how a vacuum chip removal and cooling system works:

Pros of vacuum chip removal and cooling system

Vacuum chip removal systems have many good points. You get a cleaner workspace, which helps you make precise parts. The vacuum holds the workpiece steady so it does not move. This helps you make accurate parts every time. The cooling system keeps the tool from getting too hot. You can cut for longer without problems. Less friction protects your machine parts. These systems are great for places that need a spotless environment, like electronics or medical device shops.

Check out the main advantages in this table:

Cons of vacuum chip removal and cooling system

Vacuum chip removal and cooling systems have some problems. You need to check and clean the filters often. If you do not, chips can block the system and cause trouble. These systems cost more than basic chip removal systems. You may need extra space for the vacuum and coolant tanks. The system can be noisy. If you use the wrong filter, chips can get back into the coolant and hurt your machine. Always use the right filter and keep the system clean. This helps your cnc chip removal and cooling system last longer and work better.

You should pick a vacuum chip removal and cooling system if you want a clean workspace and high precision. This type of chip removal system is a smart choice for advanced cnc work.

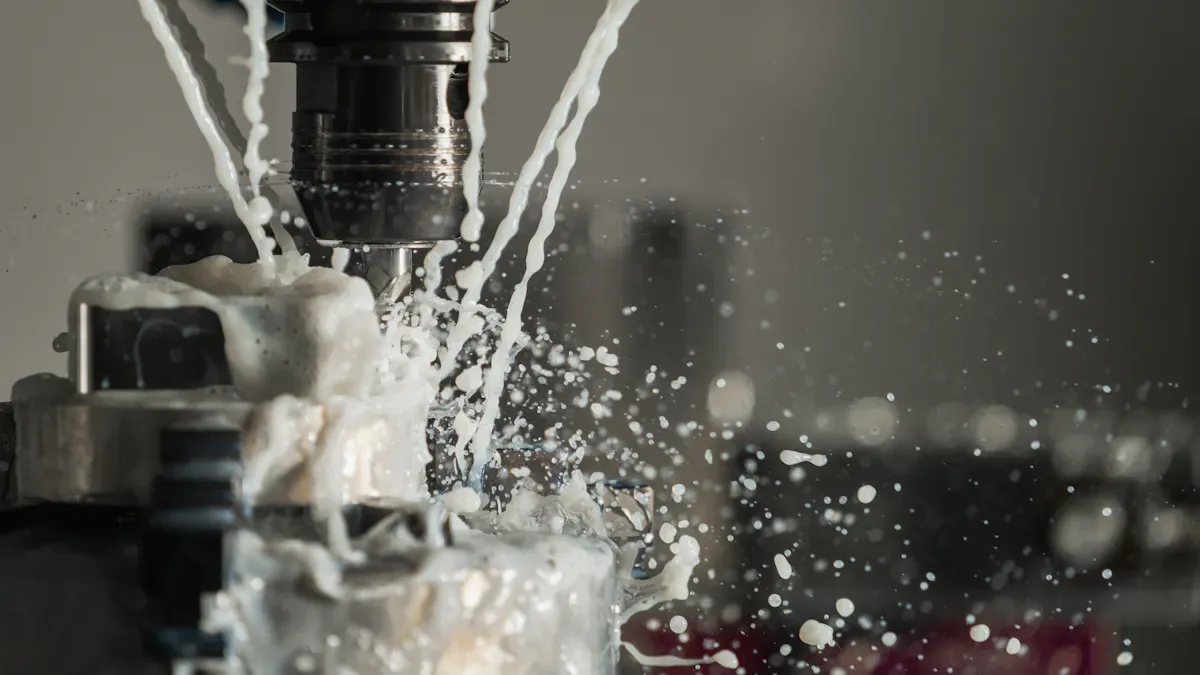

Coolant Flush Chip Removal Systems

How coolant flush chip removal systems work

Coolant flush chip removal systems use coolant systems to keep your cnc machine clean and cool. You see these systems in many modern shops. The coolant flows at high pressure onto the cutting tool and workpiece. This action cools the area and pushes chips away from the cutting zone. The coolant collects the chips and carries them to a filtration system. The filter removes the chips, and the coolant returns for reuse. This process keeps your workspace clear and helps your machine run smoothly.

• Coolant systems remove chips from the cutting area.

• The coolant is pumped at high pressure for both cooling and chip removal.

• The flow collects chips and sends them to a filter for reuse.

Advantages of coolant flush chip removal systems

You get many benefits when you use coolant flush chip removal systems. These systems give you improved tool life because the coolant keeps the tool and workpiece cool. You can run your cnc machine for longer periods without stopping. Coolant systems also help you make better parts. The chips do not stay near the cutting area, so you get a smoother finish. You can use coolant systems with a heavy duty cnc vertical milling machine for tough jobs. These systems work well with many chip shapes and sizes.

Here are some key advantages:

💡 Tip: Use coolant systems with good filters to keep your cnc machine running at its best.

Limitations of coolant flush chip removal systems

Coolant flush chip removal systems have some limits. You must check and clean the filters often. If you do not, chips can get back into the coolant and cause problems. Coolant systems need pumps, tanks, and filters, so they take up more space. These systems cost more than simple chip removal systems. If you use the wrong filter, chips may recirculate and damage your machine. You must also keep an eye on coolant levels and quality. Some materials may not work well with certain coolant systems.

• Coolant flush chip removal systems need good filtration to avoid recirculation issues.

• You must maintain pumps and tanks to keep the system working.

• These systems may not suit every type of machining or material.

If you want a clean workspace and better results, coolant flush chip removal systems can help. You just need to keep up with maintenance and use the right filters for your cnc machine.

Importance of Efficient Chip Removal

Impact on CNC machine performance

Efficient chip removal helps your CNC machine work well. If chips block the tool path, the machine slows down. Too many chips can make the machine stop or lose accuracy. Good chip removal systems stop these problems. They keep the area clean and protect the machine from harm. Compressed air systems blow chips away and help the machine run better. The tool moves smoothly and does not hit old chips.

• Efficient chip removal keeps the tool path clear.

• It stops finished parts from getting scratched.

• You do not cut chips again, so the surface stays nice.

• Compressed air systems keep things clean and reliable.

Note: Keeping chips away from the tool helps your CNC machine last longer and work better.

Here is a table that shows how efficient chip removal helps the machine:

Effects on part quality and safety

Efficient chip removal helps you make better parts. If chips stay on the workpiece, they can scratch it. You get smoother parts when you remove chips fast. Safety gets better because sharp chips are not left around. Workers do not get hurt and the area stays neat. You protect the machine and the people using it. Good chip removal systems make your shop safer and your parts better.

• You get smooth surfaces and fewer mistakes.

• Workers stay safe from sharp chips.

• The workspace stays clean and easy to use.

💡 Tip: Always check your chip removal system to keep your work safe and your parts high quality.

Choosing a Chip Removal System

Key factors: material, chip shape, flow, coolant, conveyor type

When you choose a chip removal system, you need to think about several important factors. Each factor can change how well your system works and how much you get out of your cnc machine.

• Material Properties: Hard materials like stainless steel need slower cutting speeds. Softer materials such as aluminum let you cut faster and remove chips more easily.

• Chip Shape and Flow: Long, stringy chips can block your system. Short, broken chips move through most systems without problems. You should match the system to the chip shape your process creates.

• Coolant Use: Some systems use coolant to help move chips and keep tools cool. If you use a lot of coolant, pick a system with strong filters.

• Conveyor Type: Chain conveyors work well for heavy chips. Belt conveyors fit lighter chips. Screw conveyors fit in small spaces.

• Tool Material and Geometry: Carbide tools let you cut faster and make more chips. High-speed steel tools work at lower speeds. The shape of your tool also changes how chips form and flow.

🛠️ Tip: Always check your machine’s needs before you pick a chip removal system. The right choice helps you avoid problems and keeps your shop running smoothly.

Matching chip removal systems to applications

You should match your chip removal system to your specific job. If you work with tough materials or make lots of chips, a conveyor or coolant flush system can help you keep up with the flow. For simple jobs with fewer chips, a gravity-based system may be enough. Vacuum systems work best when you need a clean workspace and high precision.

A good chip removal system boosts productivity. You spend less time cleaning and more time making parts. This leads to increased machine productivity and longer machine life. When you remove chips quickly, your tools last longer and your parts look better. You also keep your workspace safer for everyone.

💡 Note: Picking the right chip removal system helps you get the most out of your cnc machine and supports your shop’s productivity goals.

You can pick from different chip removal systems. These include gravity-based, conveyor, vacuum, and coolant flush. Each system is best for certain jobs and chip types. Good chip removal keeps your cnc machine safe. It also helps you make high quality parts. New tools like smart machining assistants make your work easier. Adaptive toolpath intelligence helps you work faster and smarter.

Pick the chip removal system that fits your material, chip shape, and workspace.

FAQ

What is the main purpose of a CNC chip removal system?

You use a chip removal system to keep your CNC machine clean. It moves metal chips away from the cutting area. This protects your machine and helps you make better parts.

How often should you check your chip removal system?

You should check your chip removal system every day. Look for blockages or worn parts. Clean bins and filters often. This keeps your machine running smoothly.

Which chip removal system works best for heavy chip loads?

You get the best results with conveyor-based systems for heavy chip loads. Chain conveyors handle large amounts of chips. They work well with tough materials and big jobs.

Can you use coolant flush systems with all materials?

You can use coolant flush systems with most materials. Some materials may react with certain coolants. Always check the coolant type before you start machining.

What happens if you ignore chip removal maintenance?

If you ignore maintenance, chips can block your machine. This causes downtime and damages parts. You risk safety issues and lower part quality. Regular maintenance prevents these problems.
